Overview of Barite

Barite, also known as barium sulfate (BaSO₄), is a significant non-metallic mineral characterized by its high density, low hardness, stable chemical properties, and non-magnetic nature. It is widely used in various industries, including as a weighting agent in drilling mud for oil and gas exploration, and as a chemical filler in paint, rubber, and plastics. Due to its unique physical and chemical properties, barite is regarded as an important mineral resource in geological exploration and industrial production.

Specific Gravity Requirements of Barite

The primary use of barite is as a weighting agent to increase the density of drilling mud. In oil and gas drilling, barite powder is commonly added to drilling fluids to enhance their density, balance subsurface pressure, and prevent blowouts. For such applications, the specific gravity typically needs to be above 4.2.

In the chemical and other industrial sectors, the specific gravity requirements for barite are relatively lower, usually around 4.0. For instance, in the paint, plastic, and rubber industries, barite is used as a filler material to improve the durability and hardness of products, while also providing flame retardancy and corrosion resistance. Since different industries have varying specific gravity requirements for barite, the beneficiation process must be tailored to the final application to ensure precise mineral selection.

Barite Jigging Separation

Mineral Jigs are commonly used in the mineral processing industry to concentrate baryte. By utilizing the density difference between baryte and gangue minerals, jigs create a pulsating bed that allows the denser baryte particles to sink while the lighter gangue minerals remain suspended. This process effectively separates the valuable baryte from the waste material.

Barite Beneficiation Process

The beneficiation process for barite primarily includes (washing),crushing, screening, jigging, and dewatering.

The specific process steps are as follows:

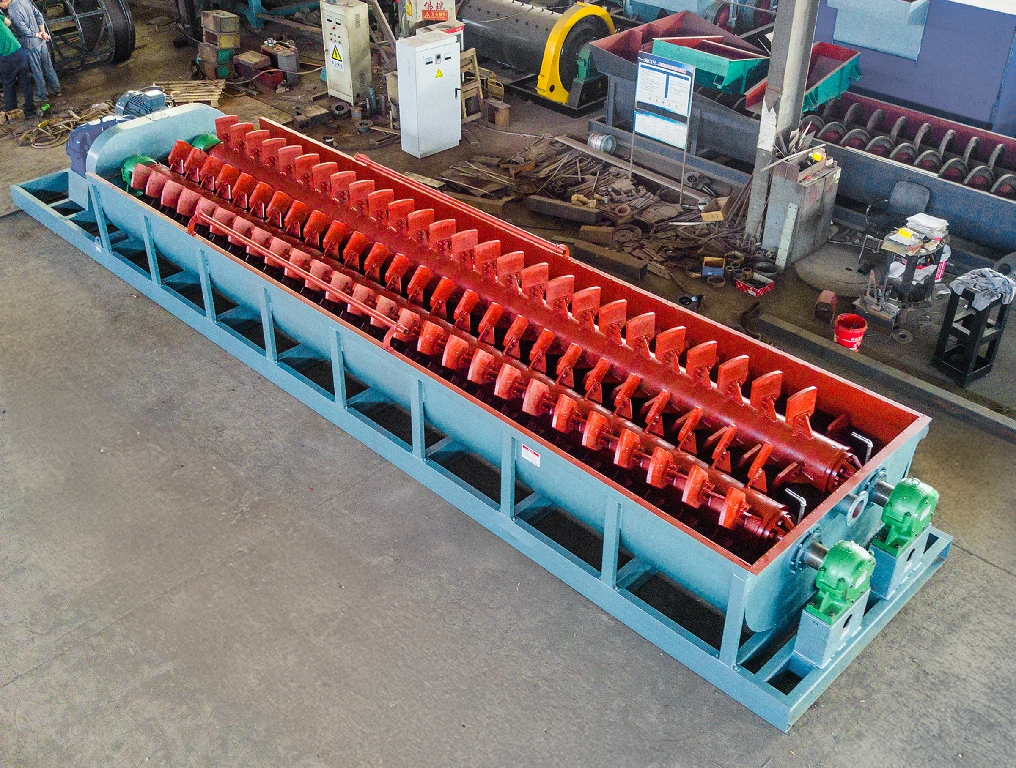

Washing: If the raw barite ore has a high clay content, a washing process must be added before crushing and screening. Washing effectively removes surface clay and impurities from the ore, reducing the difficulty of subsequent processing steps and improving the purity of the final product.

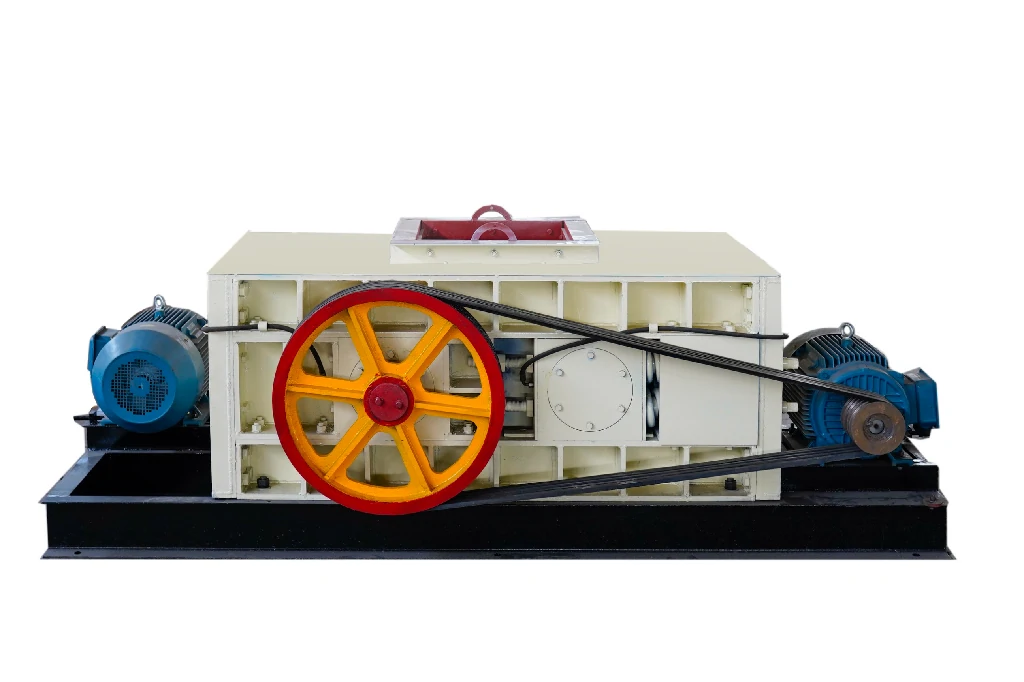

Crushing: Barite, being brittle, requires a roller crusher to crush the ore to the appropriate size, ensuring that the barite is fully liberated from the gangue. This equipment effectively minimizes the production of powder, facilitating subsequent jigging separation.

Screening: The crushed barite is then screened by size. The purpose of screening is to classify the ore into different particle sizes, which are then fed into coarse and fine jigging machines for separation. Proper screening and classification ensure that the ore is processed under optimal conditions during the subsequent jigging stage.

Jigging: Jigging is the critical step in the barite beneficiation process. Ores of different particle sizes are processed in different jigging machines according to their respective jigging parameters. This separation method maximizes the purity and recovery rate of barite concentrate. Coarse jigging machines are used for larger particles, while fine jigging machines are employed for smaller particles.

fine barite jig

coarse barite jig

Dewatering: After jigging, the barite concentrate needs to be dewatered to remove surface moisture, ensuring the quality of the final product and facilitating subsequent storage and transportation.

Advantages of Jigging Separation

High recovery: Jigs can achieve high recovery rates of baryte from the ore.
Fine particle separation: By adjusting operating parameters, jigs can effectively separate fine particles of baryte.
Adaptability to different ores: Jigs can handle ores with varying mineral compositions.
Small footprint: Jigs require relatively small floor space.
Reliable operation: Jigs have a simple mechanical design and are therefore reliable and less prone to breakdowns.

Forui’s Barite Beneficiation Production Line

Forui offers a complete set of barite beneficiation production line equipment, covering the entire process from crushing, washing, screening, and jigging to dewatering. Our equipment is scientifically designed and easy to operate, helping clients achieve efficient and stable production. We have numerous successful cases worldwide and have earned the trust of our clients with our outstanding equipment performance and comprehensive after-sales service. If you need barite beneficiation equipment, please feel free to contact us. We are dedicated to providing you with the best solutions.
