Introduction
The 4 PG roller crusher, with its unique four-roller structure, is suitable for a variety of materials such as manganese ore, limestone, barite, talc, coal, and smelting slag. It is widely used in industries including mining, construction materials, chemical, metallurgy, and recycling.
Roller crusher has a crushing ratio of 5 to 8 and are used for fine crushing. The 4PG roller crusher has a wide range of feed particle sizes, up to 9mm, and the discharge size is 0.2-50mm. The four roller crusher has finer crushing discharge size and larger processing capacity than the two roller crusher.
Working Principle
FORUI four roll crusher is fixed with four high-strength resistant grinding rollers. Four rollers relative rotation generates high extrusion pressure and shear force for crushing the material. Firstly the material enters into the space between the topside two rollers. Here, it is extruded, rolled and sheared (coarse crushing) by the the topside two rotation rollers. Secondly the material extruded and milled (fine crushing) by the bottom two rolls which are relatively rotating. under the extrusion, cut and mill of the bottom two rolls, the material becomes the required size , sent by the transport equipment.
Features
4PG roller crusher compared to 2PG roller crusher:
- Higher crushing ratio: 4-roller crushers can reduce larger materials to smaller sizes more efficiently.
- Increased processing capacity: More rollers in a 4-roller crusher enhance its capacity, ideal for large-scale production.
- Uniform particle distribution: The multi-roller design yields a finer, more consistent product.
- Easy adjustment: Particle size control is simple with adjustable roller gaps.
- Reduced wear: Even wear distribution among four rollers and lowers maintenance costs.
- Long serive time: The rollers is wear-resisting chromium molybdenum copper alloy with long service time.
Technical Parameters
| Model | Max Feed Size (mm) | Discharge Size(mm) | Capacity(t/h) | Power(kw) | Protection Model |
|---|---|---|---|---|---|
| 4PG 0404 | 20 | 0.2-10 | 2-30 | 7.5/11 | spring |
| 4PG 0605 | 40 | 0.2-15 | 5-60 | 30/37 | spring |
| 4PG 0806 | 40 | 0.2-20 | 8-90 | 37/45 | spring |
| 4PG 0809 | 60 | 0.2-20 | 12-120 | 45/55 | spring or hydraulic |
| 4PG 0812 | 60 | 0.2-20 | 20-180 | 55/75 | spring or hydraulic |
| 4PG 1012 | 80 | 0.2-30 | 30-220 | 75/90 | spring or hydraulic |
| 4PG 1212 | 90 | 0.2-40 | 45-320 | 90/110 | spring or hydraulic |
| 4PG 1216 | 90 | 0.2-50 | 55-400 | 110/132 | spring or hydraulic |

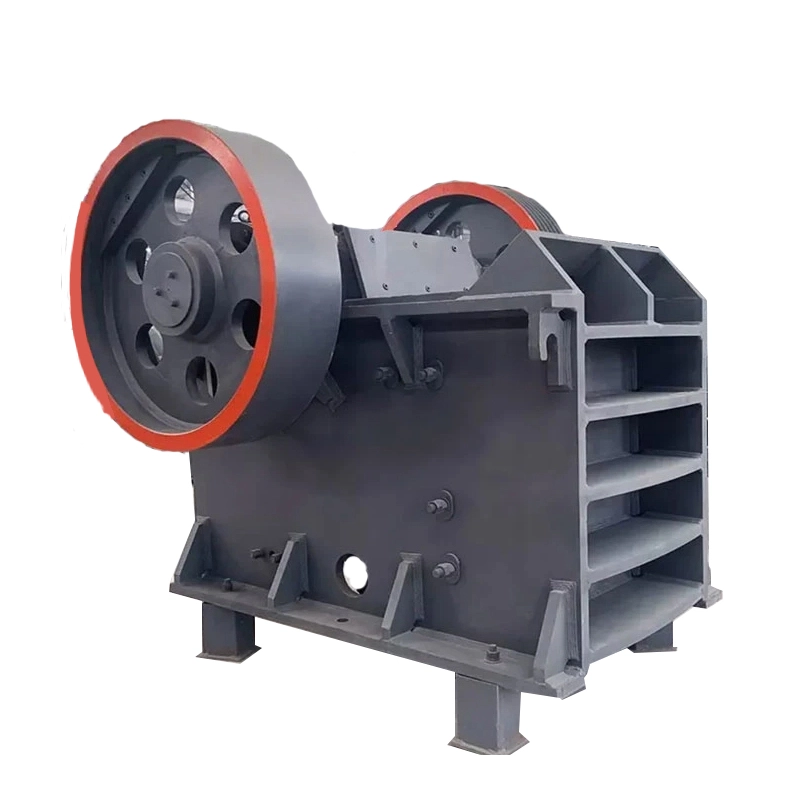

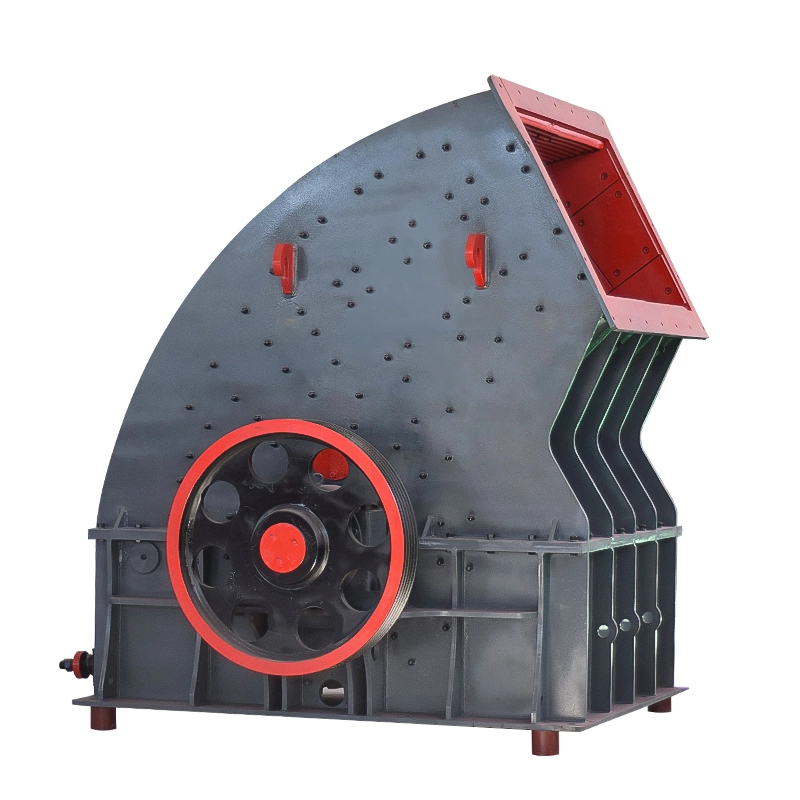

Other Crushers
